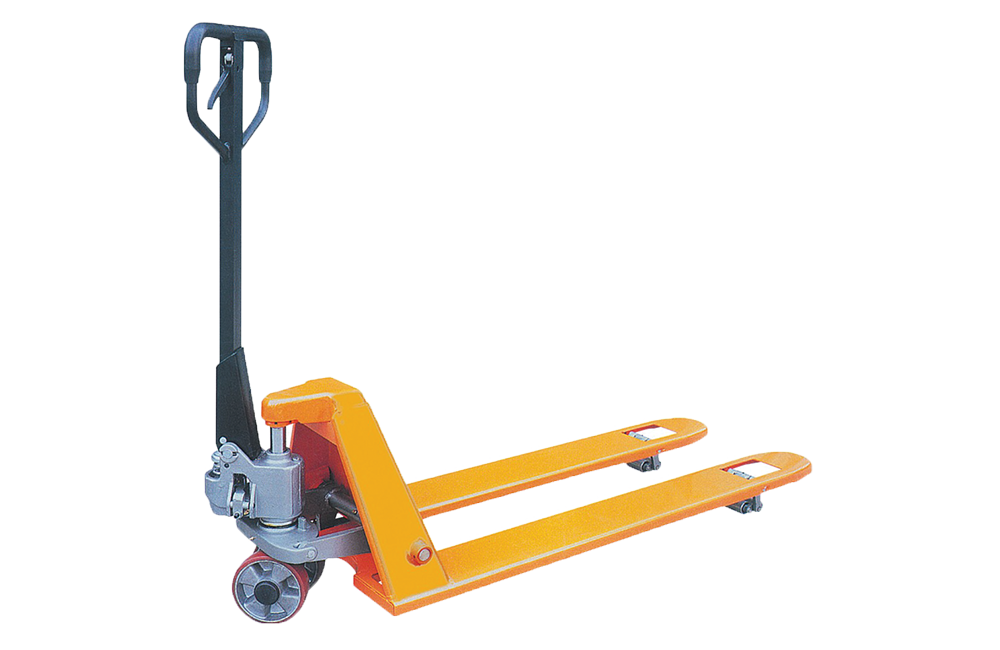

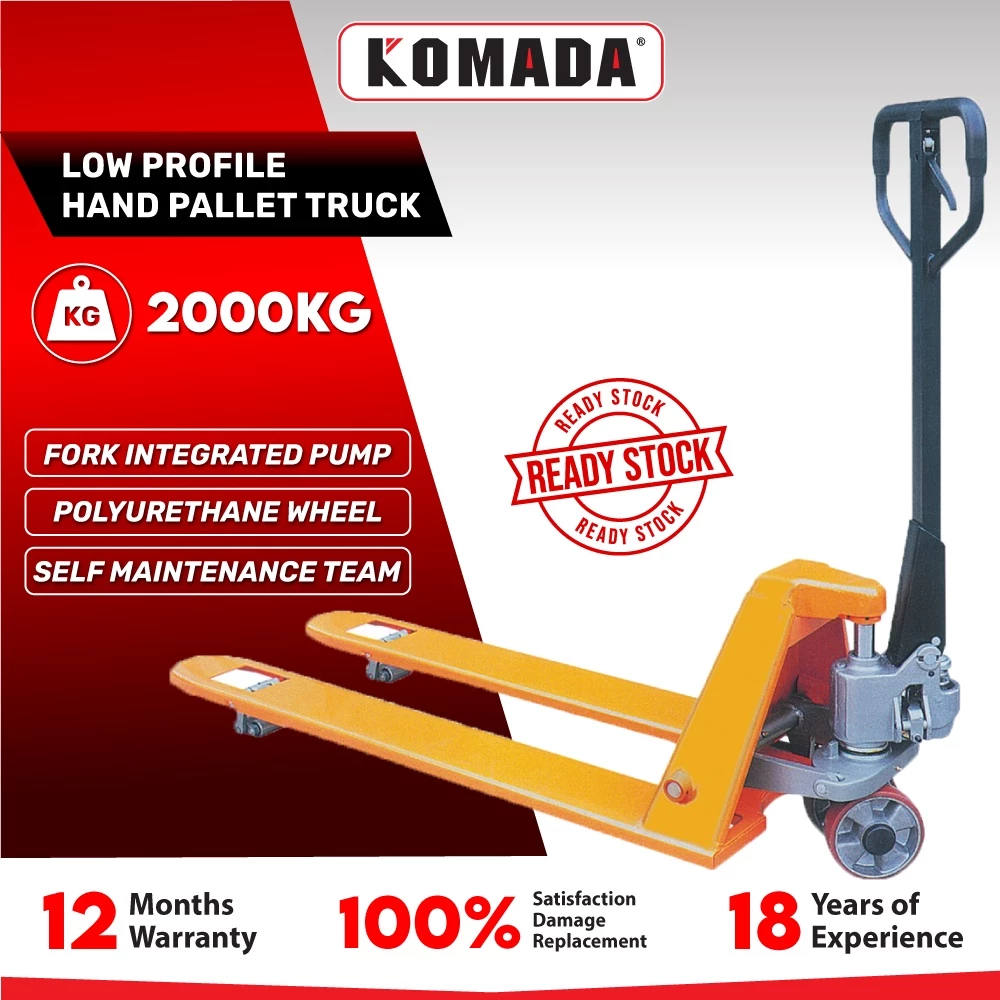

RZ Series Low Profile Hand Pallet Jack 2000KG

The KOMADA Low Profile Hand Pallet Truck is specifically designed to handle lower-sized pallets with ease. Indeed, its reduced initial fork height allows users to transport low-profile pallets that standard trucks may struggle with. Furthermore, this model is available in multiple sizes and load capacities. Consequently, it offers a truly versatile solution for a wide variety of warehouse environments.

Key Features:

• Low Profile Design: first a minimum fork height of just 52 mm makes it ideal for low-sized pallets.

• Heavy Load Capacity: Secondly, it is impressively capable of handling up to 2000 kg.

• Flexible Dimensions: In addition, it comes with different fork lengths and widths. Therefore, it can easily meet various pallet handling needs.

• Smooth Operation: Moreover, this truck is equipped with durable PU wheels. As a result, it ensures efficient maneuverability.

• Customizable: Finally, color options are available; specifically, red or yellow, depending on current stock.

Product Variations and Specifications:

Variation Options:

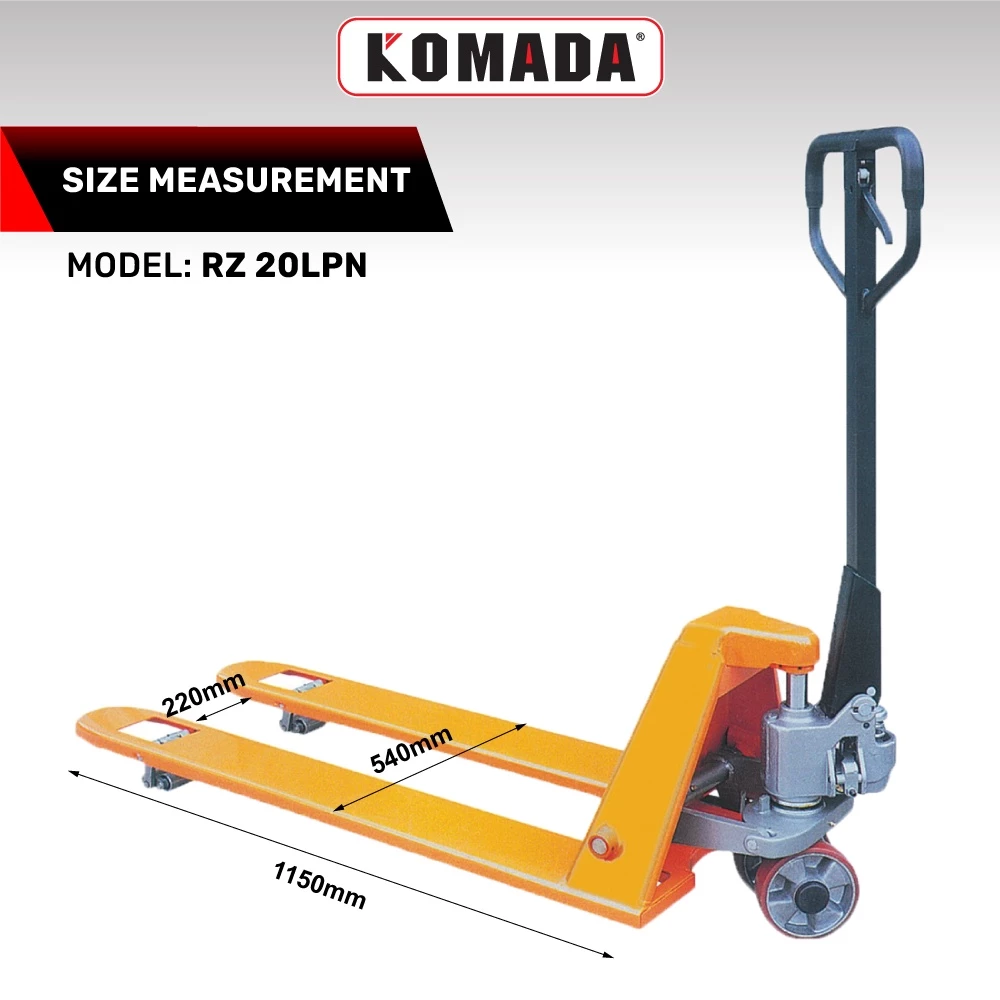

1. RZ 20LPN – Low Profile

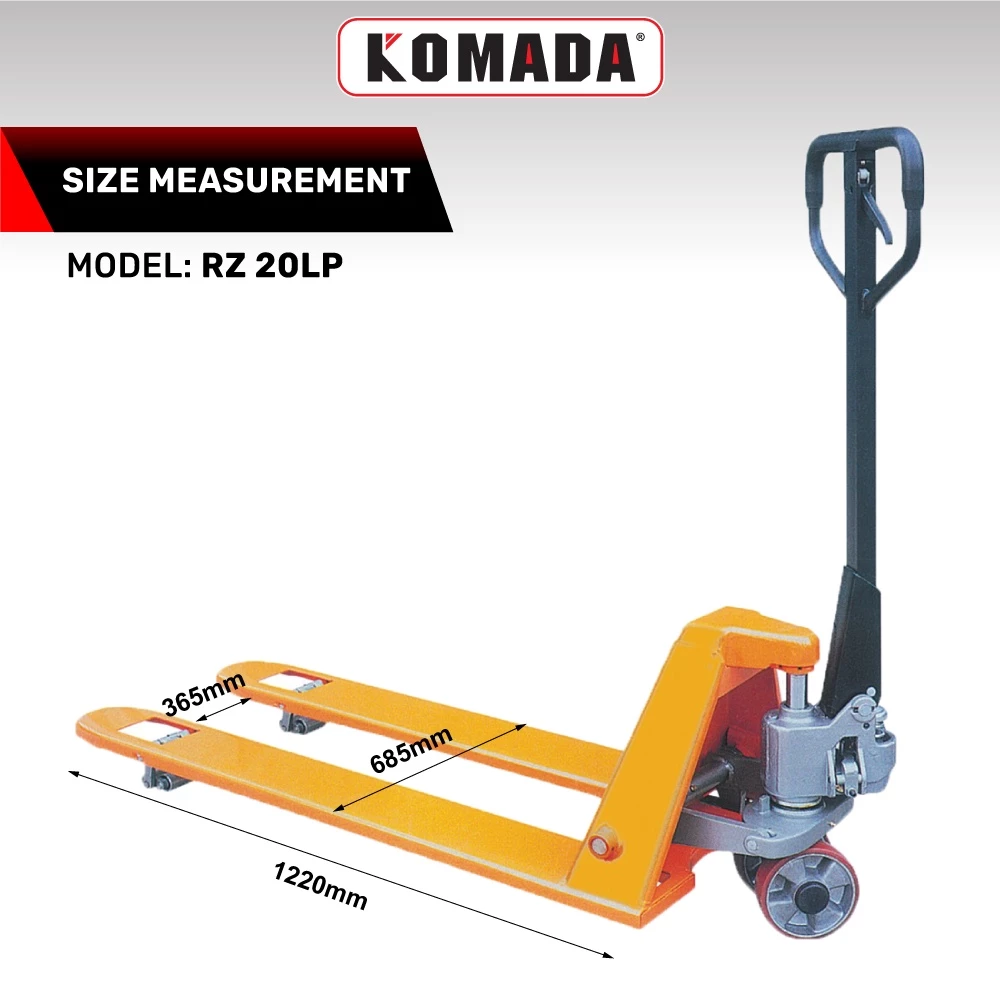

2. RZ 20LP – Standard Low Profile

Load Capacity:

• Capacity: 2000 kg

Dimensions:

• Min Fork Height (H): 52 mm

• Max Fork Height (H1): 140 / 160 mm

• Max Lifting Height: 88 / 95 mm (RZ 20LPN) ≥110 mm (RZ 20LP)

• Fork Outside Width (B): 540 mm (RZ 20LPN) / 685 mm (RZ 20LP)

• Fork Inside Width: 200 mm

• Fork Length (L): 1150 mm (RZ 20LPN) / 1220 mm (RZ 20LP)

• Single Fork Size (E x S): 160 x 37 mm (RZ 20LPN) / 160 x 50 mm (RZ 20LP)

• Overall Length (L1): 1315-1620 mm

• Overall Width: 520 mm

• Overall Height (H2): 1225 mm (RZ 20LPN) / 1245 mm (RZ 20LP)

Wheels & Tread Details:

• Single Load Wheel Size: Ø50 x 93 mm

• Steering Wheel Size: Ø160 x 50 mm (RZ 20LPN) / Ø180 x 50 mm (RZ 20LP)

• Material of Wheels: PU

Additional Information:

• Colors available: Red / Yellow (depending on stock)

To sum up, the KOMADA Low Profile Hand Pallet Truck stands as a robust and highly adaptable solution for managing low-profile pallets in warehouses. Ultimately, it promises smooth, efficient operation across various configurations.
